#include <Segmentation.hxx>

Inheritance diagram for CLAM::Segmentation:

Classes
class	InsertedOutOfBounds
Public Types
typedef std::vector< double >	TimePositions
Public Member Functions
	Segmentation ()
	Segmentation (double maxPosition)
virtual	~Segmentation ()
virtual unsigned	insert (double timePosition)=0
virtual void	remove (unsigned segment)=0
virtual unsigned	pickOffset (double timePosition, double tolerance) const =0
virtual unsigned	pickOnset (double timePosition, double tolerance) const =0
virtual unsigned	pickSegmentBody (double timePosition) const =0
virtual void	dragOnset (unsigned segment, double newTimePosition)=0
virtual void	dragOffset (unsigned segment, double newTimePosition)=0
virtual void	takeArray (const TData begin, const TData end)=0
const char *	GetClassName () const
void	select (unsigned segment)
void	deselect (unsigned segment)
void	clearSelection ()
std::string	boundsAsString () const
const TimePositions &	onsets () const
const TimePositions &	offsets () const
const std::vector< std::string > &	labels () const
void	setLabel (unsigned segment, std::string label)
const std::vector< bool > &	selections () const
unsigned	current () const
void	current (unsigned index)
double	maxPosition () const
virtual void	maxPosition (double maxPosition)
void	xUnits (const std::string &units)
const std::string &	xUnits () const
Protected Attributes
TimePositions	_onsets
TimePositions	_offsets
std::vector< std::string >	_labels
std::vector< bool >	_selection
unsigned	_current
double	_maxPosition
std::string	_xUnits

Detailed Description

Definition at line 17 of file Segmentation.hxx.

Member Typedef Documentation

typedef std::vector<double> CLAM::Segmentation::TimePositions

Reimplemented in CLAM::DiscontinuousSegmentation.

Definition at line 25 of file Segmentation.hxx.

Constructor & Destructor Documentation

CLAM::Segmentation::Segmentation ( ) [inline]

Definition at line 27 of file Segmentation.hxx.

CLAM::Segmentation::Segmentation ( double maxPosition ) [inline]

Definition at line 32 of file Segmentation.hxx.

Segmentation< T >::~Segmentation ( ) [virtual]

Definition at line 6 of file Segmentation.cxx.

Member Function Documentation

std::string CLAM::Segmentation::boundsAsString ( ) const [inline]

Testing method for the unit tests.

Definition at line 134 of file Segmentation.hxx.

void CLAM::Segmentation::clearSelection ( ) [inline]

Definition at line 125 of file Segmentation.hxx.

unsigned CLAM::Segmentation::current ( ) const [inline]

Returns the current segmentation.

Definition at line 184 of file Segmentation.hxx.

void CLAM::Segmentation::current ( unsigned index ) [inline]

Changes teh current segmentation

Definition at line 191 of file Segmentation.hxx.

void CLAM::Segmentation::deselect ( unsigned segment ) [inline]

Definition at line 121 of file Segmentation.hxx.

virtual void CLAM::Segmentation::dragOffset	(	unsigned	segment,
		double	newTimePosition
	)		`[pure virtual]`

Performs a dragging movement for the Offset of the given segment in order to move it to the newTimePosition. Constraints for the segmentation mode are applied.

Implemented in CLAM::DiscontinuousSegmentation.

virtual void CLAM::Segmentation::dragOnset	(	unsigned	segment,
		double	newTimePosition
	)		`[pure virtual]`

Performs a dragging movement for the Onset of the given segment in order to move it to the newTimePosition. Constraints for the segmentation mode are applied.

Implemented in CLAM::DiscontinuousSegmentation.

const char* CLAM::Segmentation::GetClassName ( ) const [inline]

Reimplemented in CLAM::DiscontinuousSegmentation.

Definition at line 86 of file Segmentation.hxx.

virtual unsigned CLAM::Segmentation::insert ( double timePosition ) [pure virtual]

Inserts a new border at timePosition.

Implemented in CLAM::DiscontinuousSegmentation.

const std::vector<std::string>& CLAM::Segmentation::labels ( ) const [inline]

Returns a vector of segment labels

Definition at line 162 of file Segmentation.hxx.

double CLAM::Segmentation::maxPosition ( ) const [inline]

Definition at line 196 of file Segmentation.hxx.

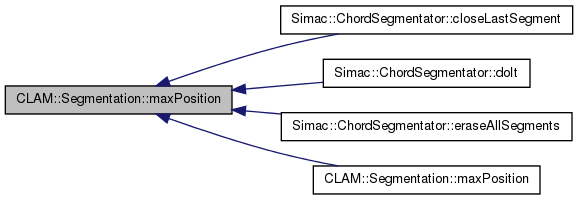

Here is the caller graph for this function:

virtual void CLAM::Segmentation::maxPosition ( double maxPosition ) [inline, virtual]

Definition at line 200 of file Segmentation.hxx.

Here is the call graph for this function:

const TimePositions& CLAM::Segmentation::offsets ( ) const [inline]

Returns a vector of time position of the segment offsets.

Definition at line 155 of file Segmentation.hxx.

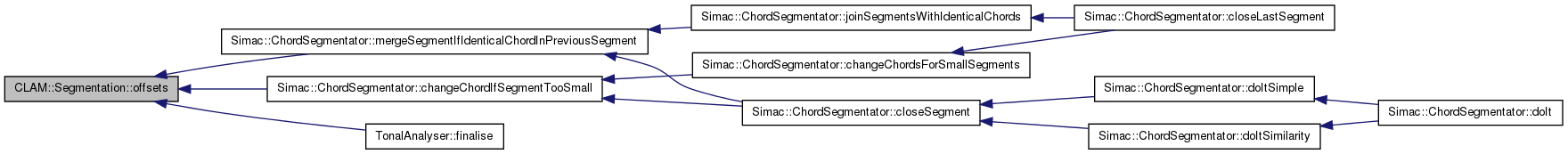

Here is the caller graph for this function:

const TimePositions& CLAM::Segmentation::onsets ( ) const [inline]

Returns a vector of time position of the segment onsets.

Definition at line 148 of file Segmentation.hxx.

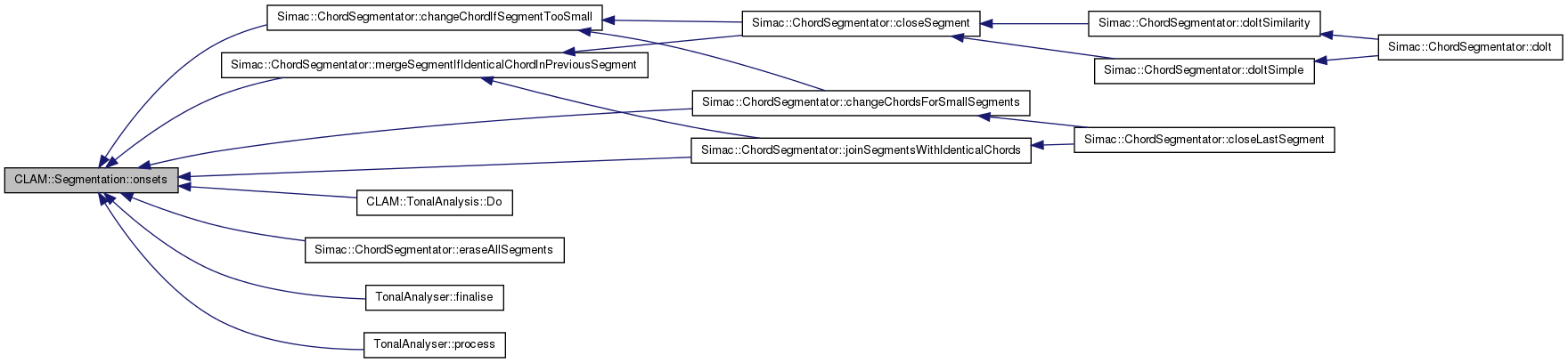

Here is the caller graph for this function:

virtual unsigned CLAM::Segmentation::pickOffset	(	double	timePosition,
		double	tolerance
	)		const `[pure virtual]`

Returns the index of the segment whose offset is nearest to the given time position, and within the tolerance. If no end of segment within the tolerance range an invalid segment is returned (nSegments)

Implemented in CLAM::DiscontinuousSegmentation.

virtual unsigned CLAM::Segmentation::pickOnset	(	double	timePosition,
		double	tolerance
	)		const `[pure virtual]`

Returns the index of the segment whose onset is nearest to the given time position, and within the tolerance. If no end of segment within the tolerance range an invalid segment is returned (nSegments)

Implemented in CLAM::DiscontinuousSegmentation.

virtual unsigned CLAM::Segmentation::pickSegmentBody ( double timePosition ) const [pure virtual]

Returns the index of the segment which body is on timePosition.

Implemented in CLAM::DiscontinuousSegmentation.

virtual void CLAM::Segmentation::remove ( unsigned segment ) [pure virtual]

Removes the specified segment. The previous segment is expanded to cover the region. When removing the first segment, the next segment is the one expanded to start at 0. When just a single element, no efect at all.

Implemented in CLAM::DiscontinuousSegmentation.

void CLAM::Segmentation::select ( unsigned segment ) [inline]

Definition at line 117 of file Segmentation.hxx.

const std::vector<bool>& CLAM::Segmentation::selections ( ) const [inline]

Returns a vector of time position of the segment selections.

Definition at line 177 of file Segmentation.hxx.
